Features:
Applications:
Features:
Laser types: FP, DFB, SLD, MOPA, etc.
Wavelength range: 1250-1700 nm
Packaging: TO, butterfly, customize
| Options | |
|---|---|

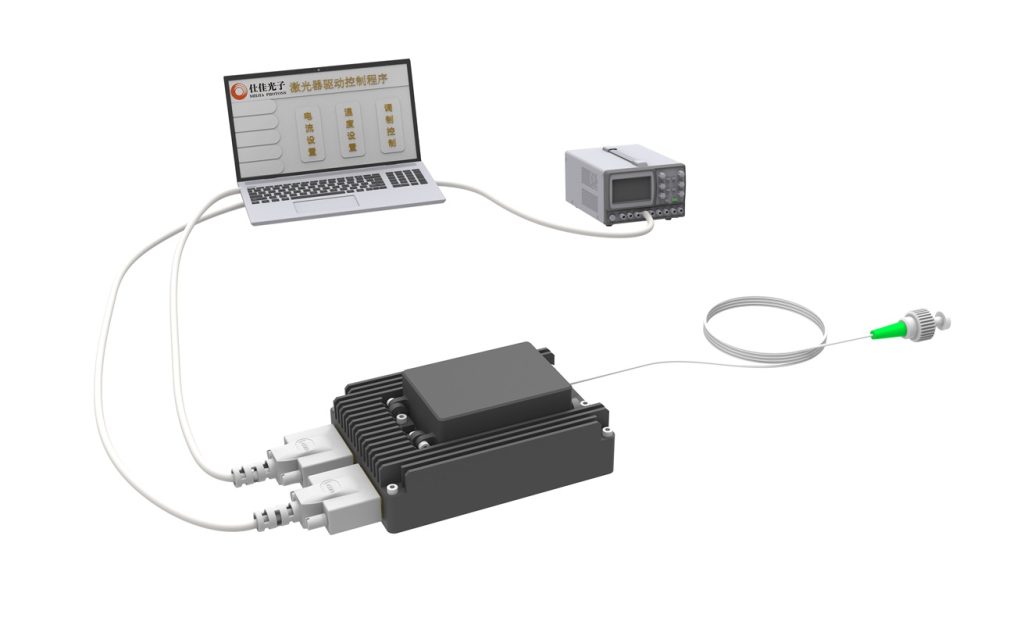

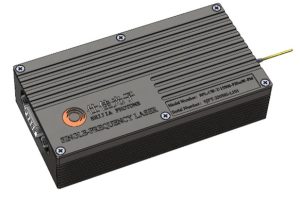

| (1) CW /QCW modules (low noise drive, high precision temperature control) - 300/500mA in a standard package (10x5x2cm) or a mini package (6x4x1cm) - 1A in a standard package (10x5x2cm) - TEC driving current 1-3A, voltage 4-5V - Remote control via RS-232 or start automatically with the pre-set working parameters |  |

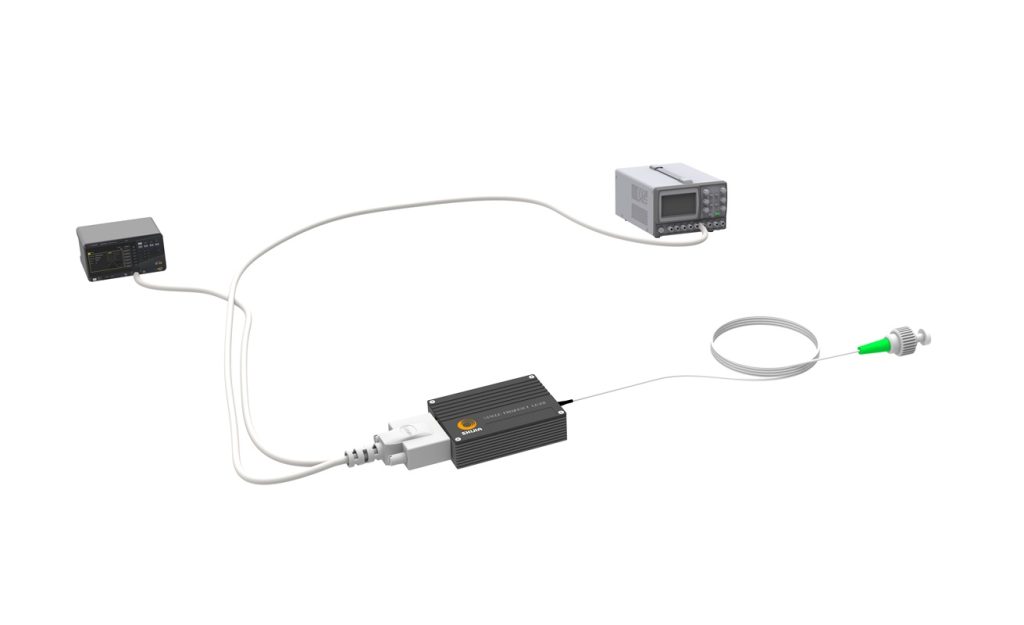

| (2) Pulsed laser modules - Gaussian pulse width 10 ~30 ns, peak current 2A, Repetition frequency 1-100 kHz - flat-top pulse width 100 ~1000 ns, peak current 0.3/0.5/1A, repetition frequency 1-100 kHz - Standard package (10x5x2cm) - External trigger signal to achieve pulsed output (long pulse or short pulse) - Applications: fiber-optic sensing, coherent optical communications, LiDAR, gas sensing, precision measurement, etc. |  |
 10-ns pulse |  15-ns pulse |
 100-ns pulse |  200-ns pulse |

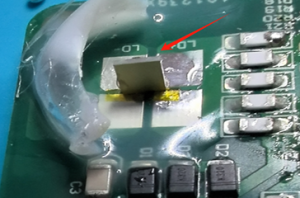

| (3) High-power, short-pulse modules - Peak current >100 A, pulse width 1 ~10 ns, repetition frequency 1-100 kHz - External trigger signal to achieve short-pulse output - Applications: TOF LiDAR, seed laser sources |  The COC is directly soldered to the PCB |

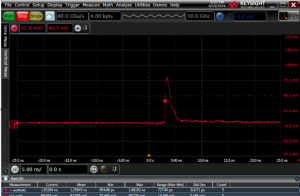

 1-ns pulse |  5-ns pulse |
Focusing on the fiber optical communications industry, SHIJIA Photons’ main business covers optical chips & devices, indoor optical cables & cable assemblies.
